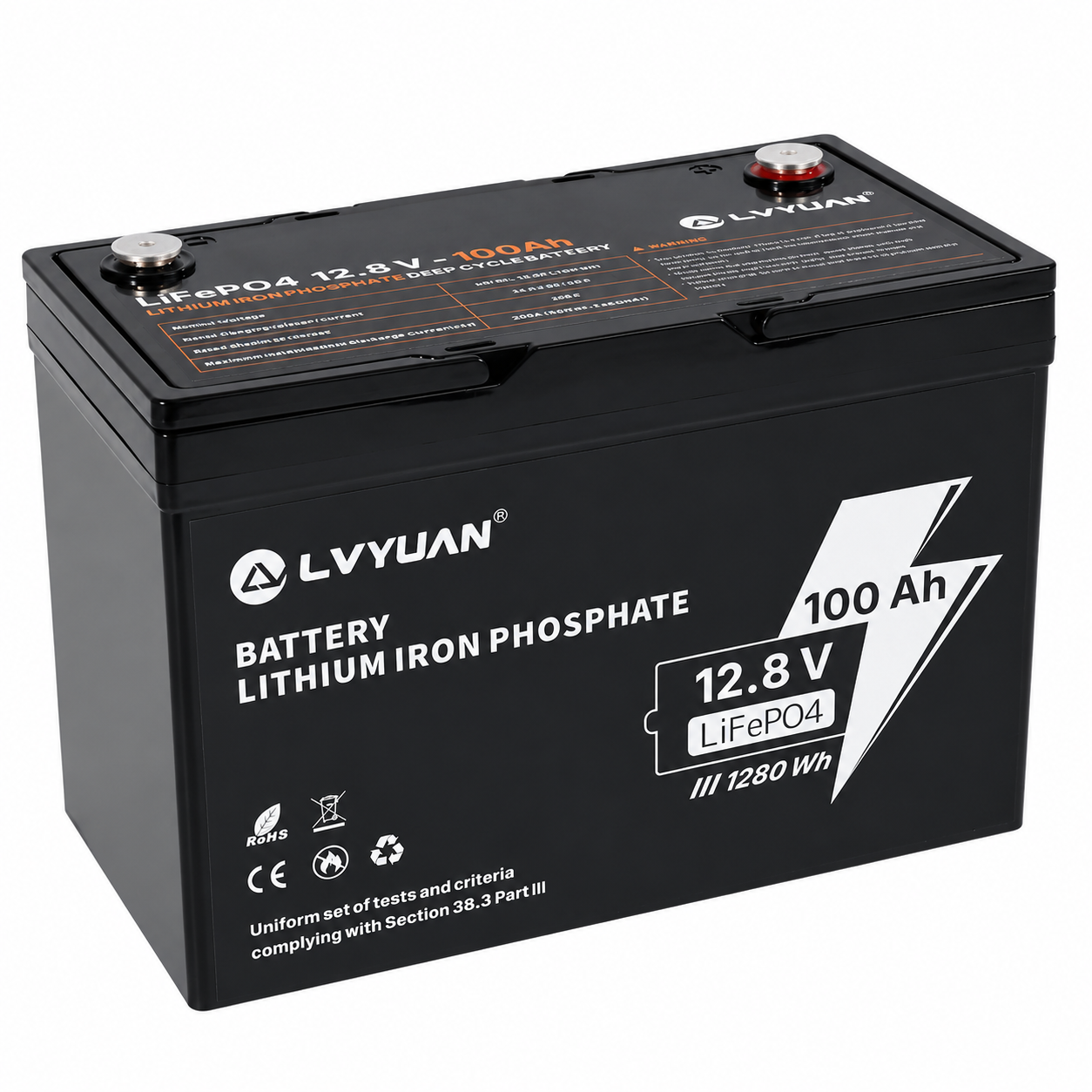

Lvyuan 12V 100Ah LiFePO4 Lithium Battery 1280Wh Deep Cycle Rechargeable Battery with Intelligent BMS
Lvyuan 12V 100Ah LiFePO4 Lithium Battery 1280Wh Deep Cycle Rechargeable Battery with Intelligent BMS
An error has occured. Please try again.
Couldn't load pickup availability
Lvyuan 12V 100Ah LiFePO4 Lithium Battery 1280Wh Deep Cycle Rechargeable Battery with Intelligent BMS
Anxious after-sales service
Anxious after-sales service
If you chat online during working hours on weekdays (Monday to Friday: 10:00-19:00), we will reply to you within the shortest 10 minutes. If you can send me an email, I will reply to you as soon as possible on the same day. Holidays (as well as year-end, beginning of year, and temporary closures) may be delayed, please understand in advance.
30 day price guarantee
30 day price guarantee
Within 30 days after purchase, if the price on LVYUAN's official website decreases, we guarantee to refund the difference according to your request.
Regarding Delivery
Regarding Delivery
Regarding reserved products, the product page will once again prompt for the shipping date. (Please note: The inventory quantity of pre-sale products is not the actual inventory.) Batteries, other goods, and accessories will be shipped in separate packaging. If you place an order and make payment before 10am on weekdays, we will ship from our warehouse on the same day. Orders placed after 10am on weekdays will be shipped the next day. Orders from Friday afternoon to Sunday evening are usually shipped on Monday. Deliver on the date requested by the customer. Contact us through online chat. To ensure the safe transportation of the product, batteries, other products, and accessories will be individually packaged and transported.
Description
Upgrade your power storage system with the 12V 100Ah LiFePO4 Lithium Battery, a premium deep-cycle rechargeable battery engineered for exceptional performance, safety, and longevity. Featuring advanced Lithium Iron Phosphate (LiFePO4) technology and an Intelligent Battery Management System (BMS), this battery provides 1280Wh of reliable energy for a wide range of applications, including RVs, campers, boats, trolling motors, solar energy systems, home backup power, and off-grid living.
Unlike traditional lead-acid batteries, LiFePO4 batteries deliver a longer service life, faster charging, lighter weight, and virtually maintenance-free operation. Whether you're powering your next camping adventure or building a dependable solar energy storage system, this battery offers consistent, efficient performance you can count on.
- Premium Lithium Iron Phosphate (LiFePO4) chemistry
- 12V nominal voltage
- 100Ah battery capacity
- 1280Wh energy storage
- Intelligent Built-In Battery Management System (BMS)
- Deep cycle rechargeable design
- Supports compatible series and parallel connections
- Lightweight compared to lead-acid batteries
- Long service life with thousands of charge cycles
- Low self-discharge rate
- Stable voltage output
- Fast charging capability
- Maintenance-free operation
- Eco-friendly lithium technology
- Multiple safety protection systems
Battery Protection Functions
The integrated Intelligent BMS helps protect against:
- Overcharge
- Over-discharge
- Over-current
- Short circuit
- Overheating
- Voltage imbalance
Recommended Applications
- RV power systems
- Camper vans
- Motorhomes
- Marine batteries
- Fishing boats
- Trolling motors
- Solar energy storage
- Home backup power
- Off-grid cabins
- Portable power stations
- Emergency backup systems
- Small commercial energy storage
Specifications
| Product Type | Deep Cycle LiFePO4 Lithium Battery |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V DC |
| Rated Capacity | 100Ah |
| Energy Capacity | 1280Wh |
| Battery Management System (BMS) | Intelligent Built-In 100A BMS |
| Battery Type | Rechargeable Deep Cycle Lithium Battery |
| Cycle Life | Up to 4,000–15,000 Cycles (Depending on Depth of Discharge) |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Maximum Output Power | 1400 W |
| Recommended Charge Current | 25A (0.2C) |
| Charging Voltage | 14.4V ± 0.2V |
| Charge Method | CC/CV (Constant Current / Constant Voltage) |
| Series Connection | Up to 4 Batteries (4S) |
| Parallel Connection | Up to 4 Batteries (4P) |
| Protection Functions | Overcharge, Over-Discharge, Overcurrent, Short Circuit, Over Temperature, Cell Balancing |
| Charge Temperature | 32°F to 122°F (0°C to 50°C) |
| Discharge Temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature | 14°F to 122°F (-10°C to 50°C) |
| Self-Discharge Rate | Low Self-Discharge |
| Terminal Type | M8 · ABS enclosure |
| Dimensions (L × W × H) | 12 × 6.6 × 8.3 in (307 × 168 × 212 mm) |
| Weight | Approximately 23.1 lbs (10.5 kg) |
| Certifications | CE, RoHS, UN38.3 |
| Maintenance | Maintenance-Free |
| Recommended Charger | LiFePO4-Compatible Battery Charger |
| Compatible Applications | RVs, Campers, Motorhomes, Marine, Boats, Trolling Motors, Solar Energy Storage, Home Backup Systems, Off-Grid Power Systems, Portable Power Stations, Emergency Backup |
Package Includes
- 1 × 12V 100Ah LiFePO4 Lithium Battery
- User Manual
- Protective Packaging
Note: Battery charger, cables, mounting hardware, and accessories are typically sold separately unless otherwise specified by the manufacturer. Always use a charger specifically designed for LiFePO4 batteries for optimal performance and battery longevity.
FAQ
Is this battery suitable for solar systems?
Yes. The battery is designed for solar energy storage and works well in residential and off-grid solar installations when paired with a compatible charge controller.
Can multiple batteries be connected together?
Yes. Compatible LiFePO4 batteries can generally be connected in series or parallel according to the manufacturer's recommendations to increase voltage or capacity.

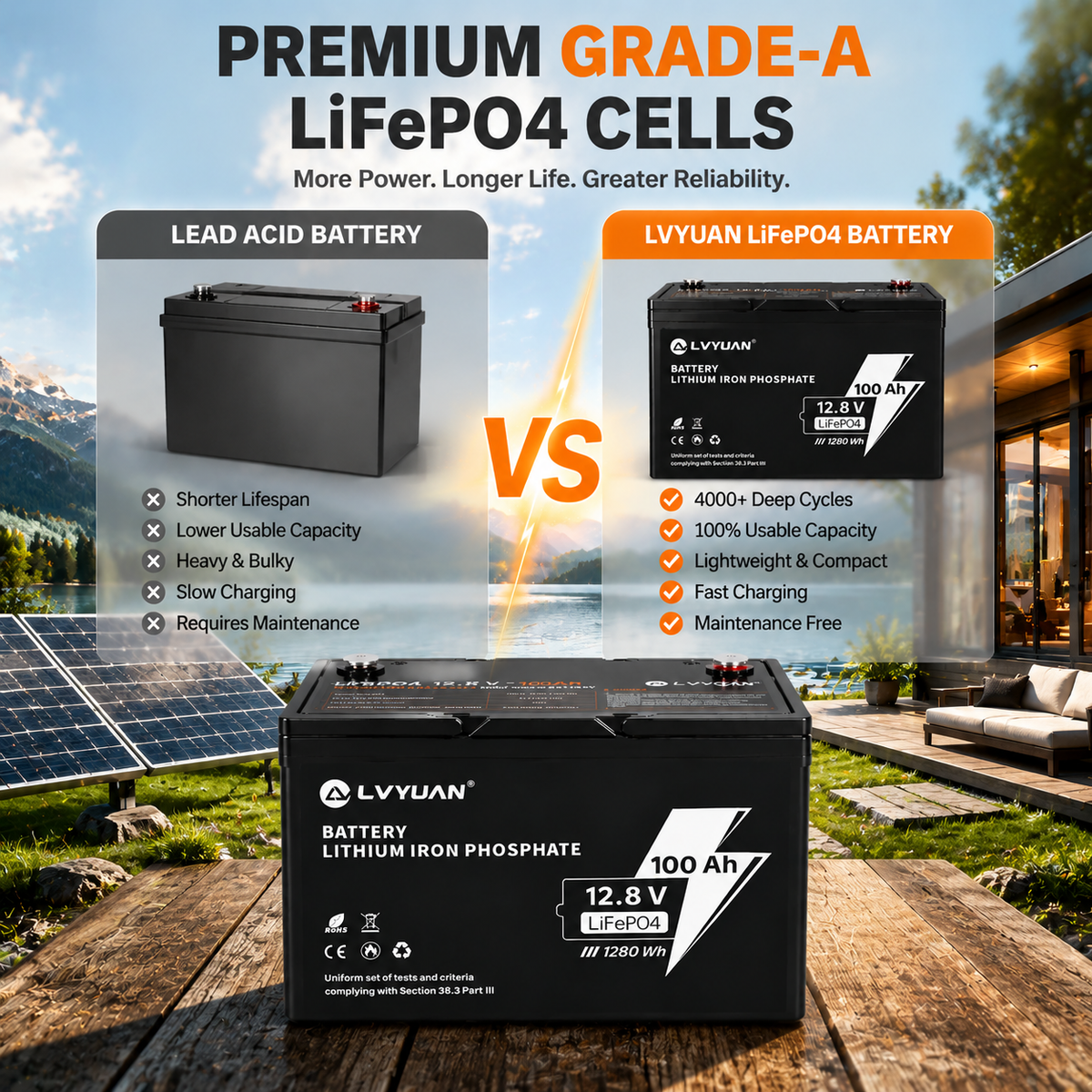

How is LiFePO4 better than lead-acid batteries?
LiFePO4 batteries typically offer:
- Longer lifespan
- Faster charging
- Lower maintenance
- Higher usable capacity
- Lighter weight
- More consistent voltage output
Is the battery safe to use indoors?
LiFePO4 batteries are widely recognized for their stable chemistry and enhanced safety compared to many other lithium battery types. Always follow installation and ventilation guidelines provided by the manufacturer.
Can I use this battery for a trolling motor?
Yes. A 12V 100Ah LiFePO4 battery is commonly used for trolling motors, providing extended runtime and dependable performance.
Does the battery require maintenance?
No. Unlike flooded lead-acid batteries, LiFePO4 batteries require little to no routine maintenance.
What is the purpose of the Intelligent BMS?
The Battery Management System continuously monitors battery performance while helping prevent damage caused by excessive charging, deep discharge, overheating, or electrical faults.
