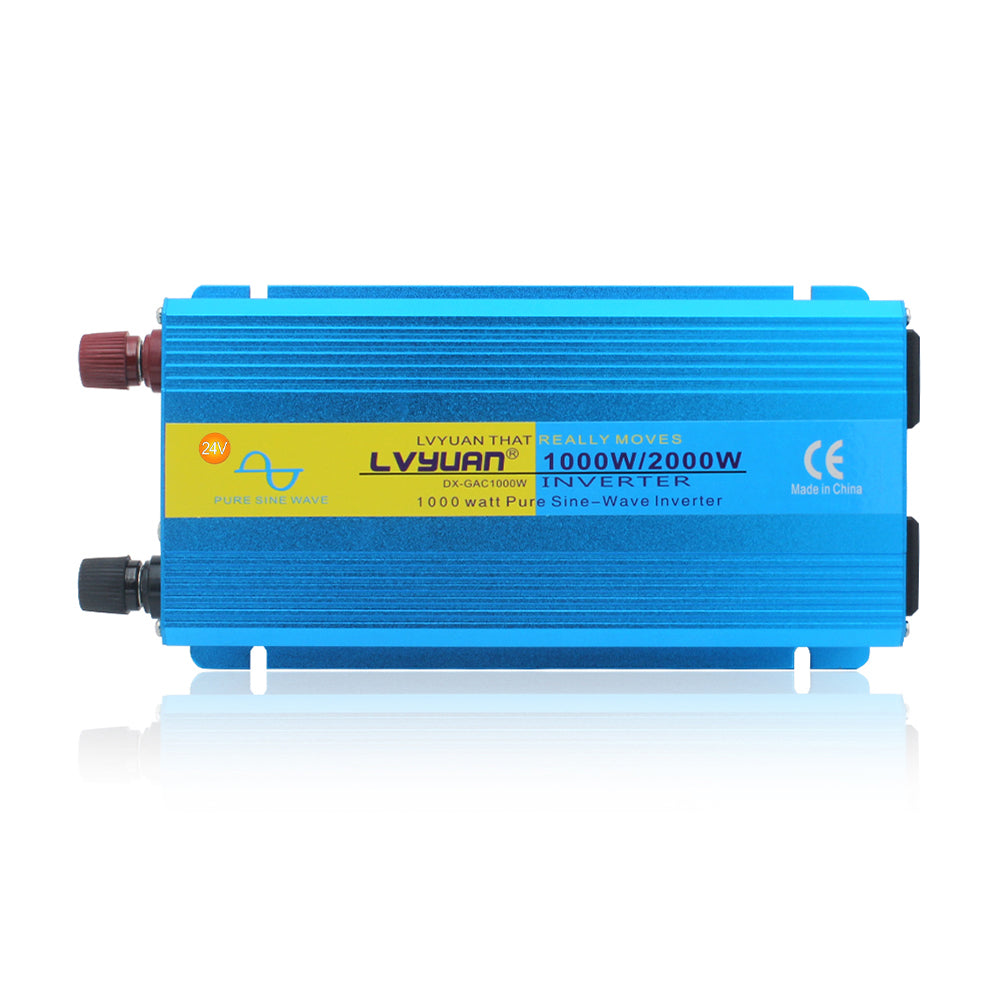

LVYUAN P1024U Power Inverter
LVYUAN P1024U Power Inverter
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
LVYUAN P1024U Power Inverter
Description
1.Always make sure that the total rated power of the connected devices is 1000W.
2.Always tighten the Positive (+) and Negative (-) terminals when the inverter is in use otherwise a loose connection can overheat due to poor contact.
3.Avoid placing the inverter in a location that receives prolonged direct sunlight or near to heat sensitive materials as the inverter can become warm during use.
More details and tips:
• Connect the inverter to a battery, and plug your AC devices into the inverter
• Run most of capacitive/inductive/resistive loads with improved program
• Please do not leave the power inverter in the ON position while your car is off.
• Disconnect the positive battery terminal before doing any wiring to the inverter
• Do not let the inverter into sunlight directly, keep it in cool environment
Package includes
- 1 x Power Inverter
- 2 x Crimper
- 1 x Cigarette lighter plug
- 1 x User Manual
Specification
| DC Input Voltage | 24V |
| Output Waveform | Pure Sine Wave |
| Output Continuous Power | 1000 Watt |
| Surge Power | 2000 Watts (< 1 second) |
| DC Input Voltage | 24V |
| AC Output Voltage | 110V ±5% 60Hz |
| USB Charge Port | 5V, 3.1A |
| Sockets | 2 X AC Type B outlets, 2 X 3.1A USB ports |
| Input Voltage Range | DC 19.5V - 30V |
| Input Low-Voltage Alarm | DC 19V ±0.5V |
| Under-Voltage Cut-Off Voltage | DC 18.5V ±0.5V |
| Input Over-Voltage Cut-Off Voltage | DC 30V |
| Thermal-Shutdown | > 167°F (> 75℃) |
| Efficiency | > 88% |
| No-load Current (Stand-by) | < 1.2 Amps |
| Protection | Overload / Short Circuit / Over heat / Reverse Polarity / Under/Over Voltage |
| THD | < 5% (Linear load) |
| Certificate | FCC |
| Built-in Cooling Fan | Yes |
| Weight | 2.53 pounds / 1.15 kg |
| Dimensions | 9.25 x 4.4 x 2.36 inches / 23.5 x 11.2 x 6 cm |
| Battery Cable | 20 inch / 510 mm |
Why Choose LVYUAN Power Inverter?
Understand LVYUAN products without naming specific brands or products.
|
Others | |
|---|---|---|
Economic and High Quality |
||
Free Basic Package |
||
Free 365-Day Warranty |
||
Lifetime After-sales Support |
Endorsed By
Common Applications of Our Inverters
Electromagnetic Compatibility (EMC) Test
Ensure no harmful electromagnetic interference and resist external interference.
Short Circuit Protection Test
Ensure effective prevention of short-circuit risks in actual use.
Overload Test
Ensure performance and protection functions during overload conditions.
Vibration and Shock Test
Simulate transportation and installation vibrations and shocks to ensure the inverter's structure and performance are unaffected.
Insulation Test
Ensure the insulation performance of the inverter's internal and external parts to guarantee user safety.
8 Rigorous Processes Ensure Consistent Inverter Performance.
Through meticulous process management, product quality is effectively controlled and improved, providing reliable assurance for users.
